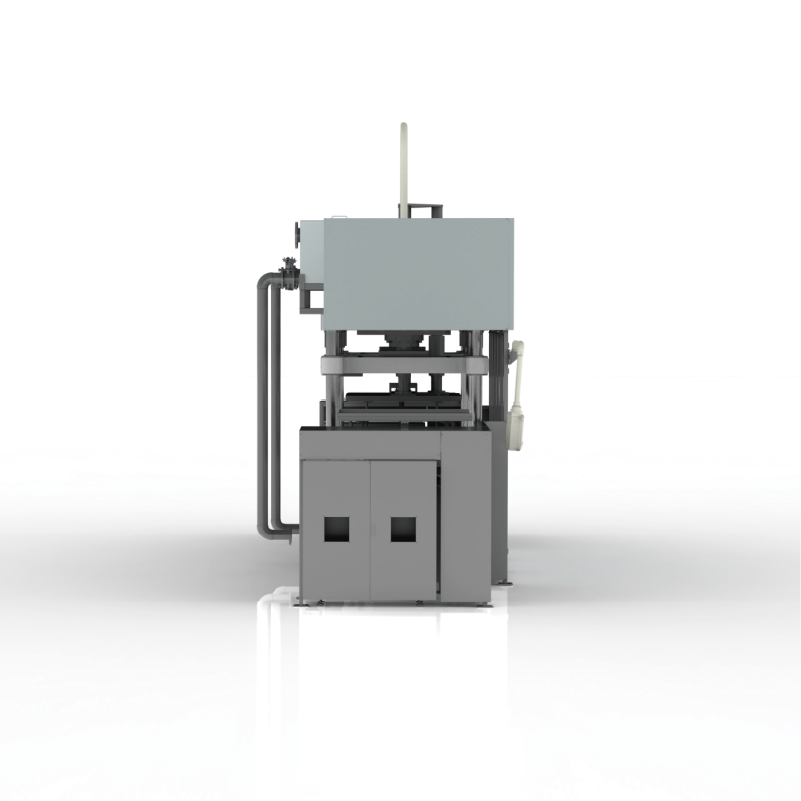

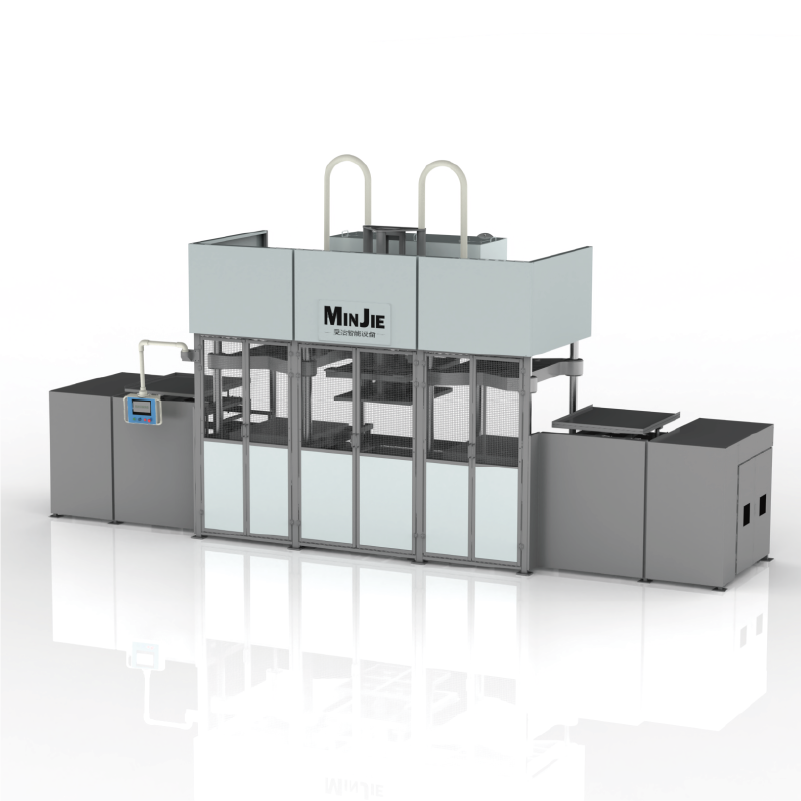

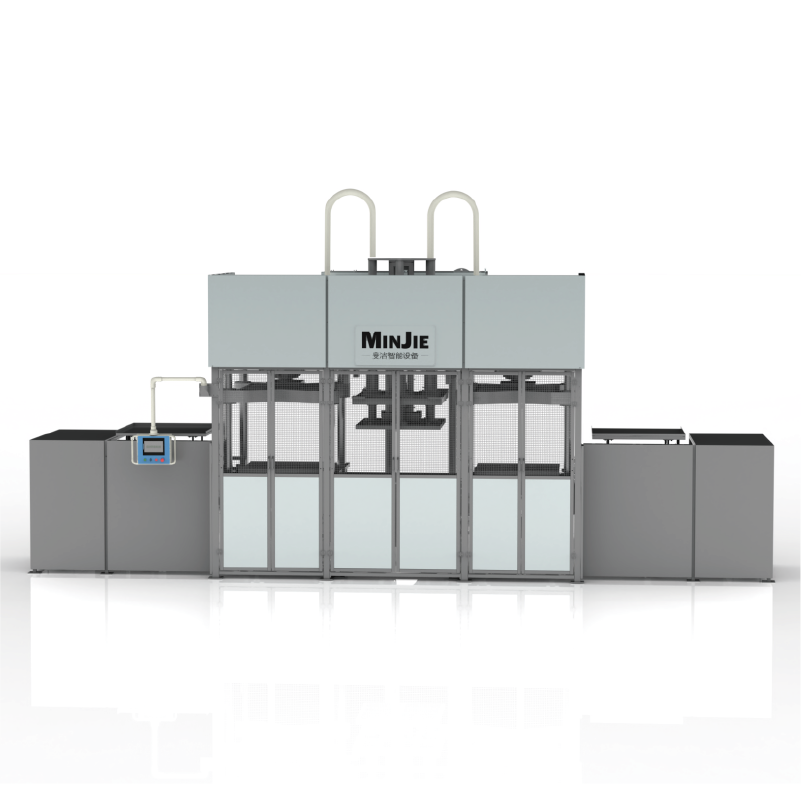

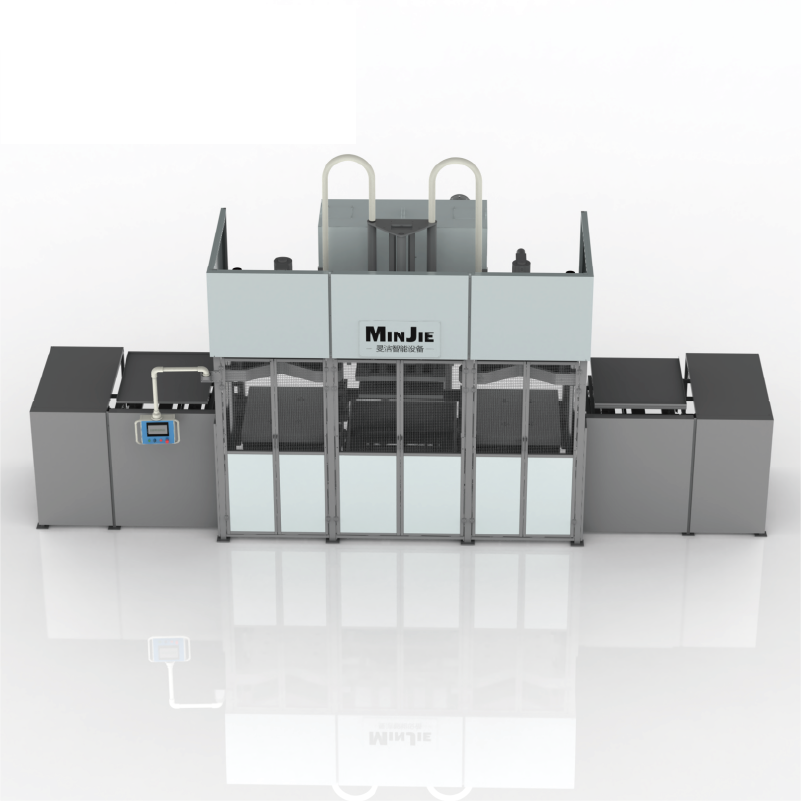

Full Automation Molded Fiber Tableware Machine MJDTN120-1210

Full Automation Molded Fiber Tableware Machine MJDTN120-1210

Type:

Thermoforming Machinery

Structure: dig forming, two hot-press working stations and off-line trimming or trimming-free

Leave Message

Device application:

Food containers with general-design with sealing function requirement,or coffer cup lid,drinks cup lid and cup with requierement on negative angle or height

Equipment advantages:

1.Feasible Product Range:
● draft angle more than 12 degrees with height not more than 130mm
● draft angle more than 10 degrees with height not more than 50mm
● draft angle more than 5 degrees with height not more than 20mm
2.Introduction to processing:
● Suction Forming→Heating→Stacking
3.Servo + Pneumatic drive, with precise locating guaranteed, running smooth with high stability
4.Dig Type Suction forming, with pulp relatively evenly distributed
5.Single Molder Daily Capacity: 600~800 kg/day (based on exact design)

Equipment Layout Design for Reference

Equipment video display:

Main parameters of equipment:

Item	Technical Parameter
Model	MJDTN120-1210
Figure Dimension(mm)	730022004200
Weight(Ton)	17.5
Platen Size(mm)	1200*1000
Work Stations	Wet Forming(Dig Type)+Hot-press(2 stations )+off-line Trimming or Trimming free
Platen Parallelism	When the single platen clamping force reaches the max (45T), single platen parallelism≤0.5mm
Mold Installation Method	Lock with Nuts
Material Configuration	All parts which directly contact pulp or water are with stainless stain pipes or baffles. Wet Forming Platen Base: 304Stainless Steel Transfer Platen Base：QT450-10 Hot-press Upper and Down Platen base：QT450-10
