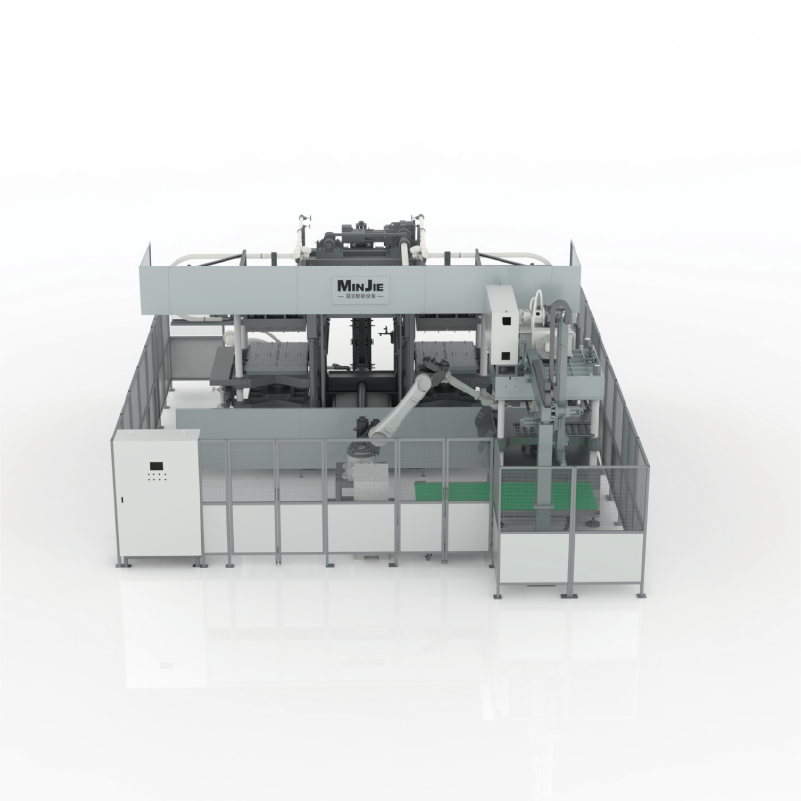

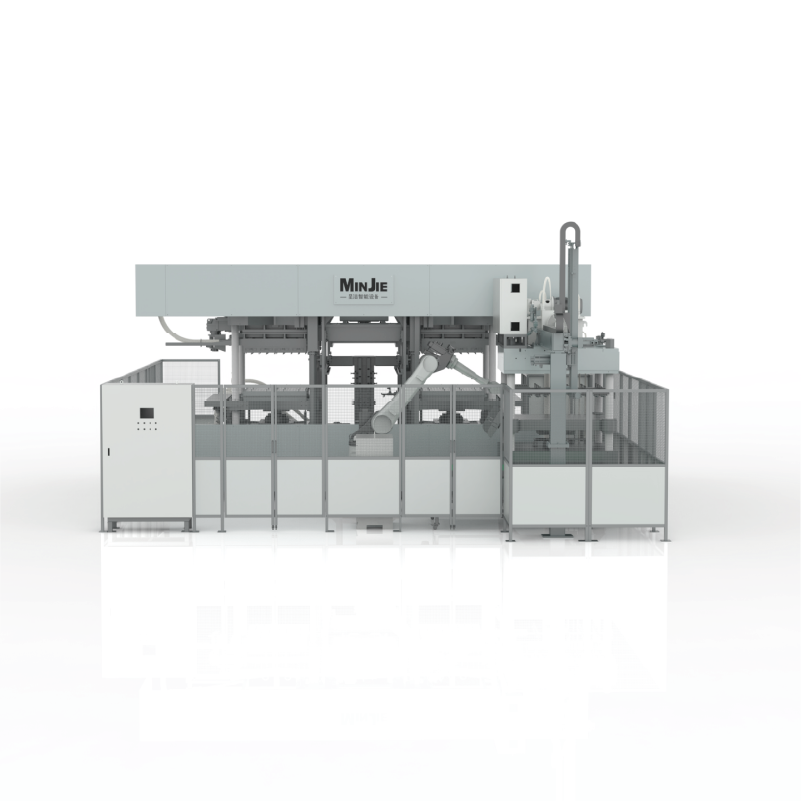

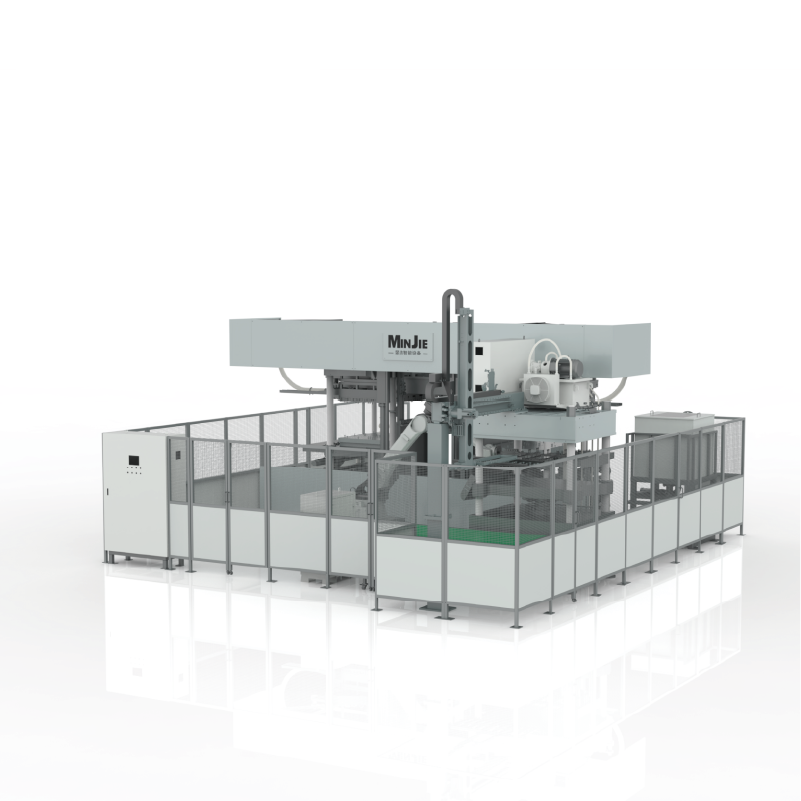

Full Automation Molded Fiber Cup & Cup Lid Machine MJCTN121-1210
Type:
Capable of making coffee cup lids with snap fit and fine-art industrial packages for 3C electronics, cosmetics // With output: 650-750 kg/day (≥140,000 pieces/day) // Platen size: 1200 mm *1000 mm
Leave Message
Equipment introduction
| Item | Technical Parameter |
| Platen size | 1200 mm*1000 mm |
| Structure | Suction Forming + Extrusion + Heat Press (two stations) + Robot + Online Trimming |
| Heat Power | Thermal Oil Heating or Electrical Heating |
| Rated Power | 14.5 kw (thermal oil heating) or 214.5 kw (electrical heating) |
| Outer Size | 7800 mm*6800 mm*3800 mm |
| Weight | 28.5 tons |
| Average Output | ≥140,000 pieces /day (90mm lid) |
| Vacuum Setting | 22-25 m³/min |
| Air Setting | ≤1.5 m³/min |
| Forming Type | Rotary Suction |
| Main Drive | Servo (Suction Forming) + Hydraulic (Heat Press) + Hydraulic (Trimming) |
| Feature | Capable of making food packaging with General design or designs with fit sealing functions,Hot/cold drinks cup lid,cup and fine-art packages like cosmetics packages,phone trays,etc |
Equipment advantages
| Processing Point | Drive Method |
| Suction Forming Work Station | Servo Motor+Precision Reducer |
| Extrusion Work Station | Servo Motor+Precision Reducer |
| Heat Press Station | Hydraulic (Hydraulic Servo，60 tonnage Force) |
| Multi-joint Robot | Servo Motor+Precision Reducer |
| Trimming Work Station | Hydraulic (Hydraulic Servo，60 tonnage Force) |
| Stacking/Conveyor/Trusser Mechanism | Servo Motor+Precision Reduce |
| Wet Product Transfer (Suction Forming-->Left Heat Press) (Suction Forming-->Right Heat Press) | Servo Motor+Precision Reduce |
| Processing point | Parameter/Feature |
| Stiffness | adopting rack structure, increasing the overall machine stiffness |
| operation accuracy | adopting full mechanical structure to ensure accuracy |
| operation safety | based on CE requirement |
| processing adaptability | with rotary suction, equipped with extrusion function (with heat generally), and also with upper heat press mold to work as transfer mold, which brings higher adaptability of packaging, especially those with high requirement and value. |
| pipeline design | optimized pipeline layout which makes the processing with higher stability |
| mold maintenance | with relatively low heating temperature (170-190℃) which lengths the hole-cleaning duration, and with reasonably long mold cleaning period. |
| machine maitenance | reasonable and user-friendly design which makes it easy to do maintenance |
| Machine | Warranty Service | Component Description |
| Cup & Cup Lid Machine | 3-year Warranty | Machine Racks, Upper Platen, Down Platen, Pulp Tank, etc. |
| 1-year Warranty | Guide rails, Sliding Blocks, Cylinders, Pneumatic Components (not including push-in fittings, sealing parts), reducers, motors, electrical components, etc. | |
| Weary Part (Out of the warranty range) | Buttons, push-in fittings, vacuum skeleton hoses, sealing parts, heat insulation plates, etc. |
Equipment Video

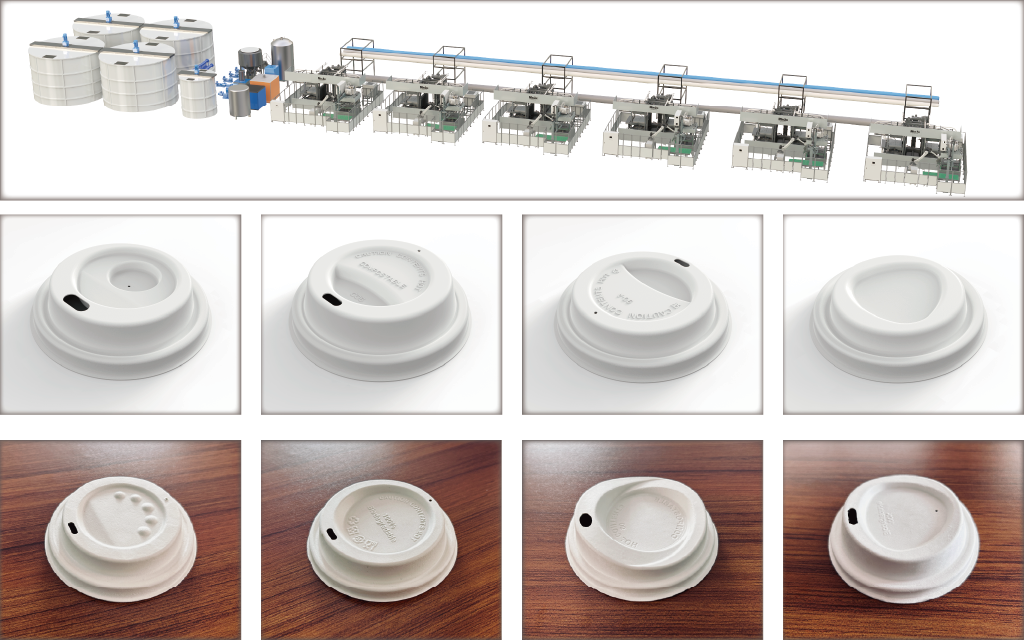

Product Applications

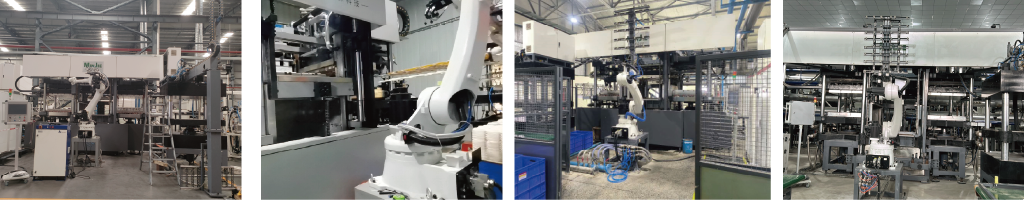

Representative Case
Keywords:
molded fiber cup lid making machine
molded pulp lid making machine
Leave a Message
HOW CAN WE HELP YOU！
We understand the importance approaching each work integrally and believe in the power of simple and easy communication.

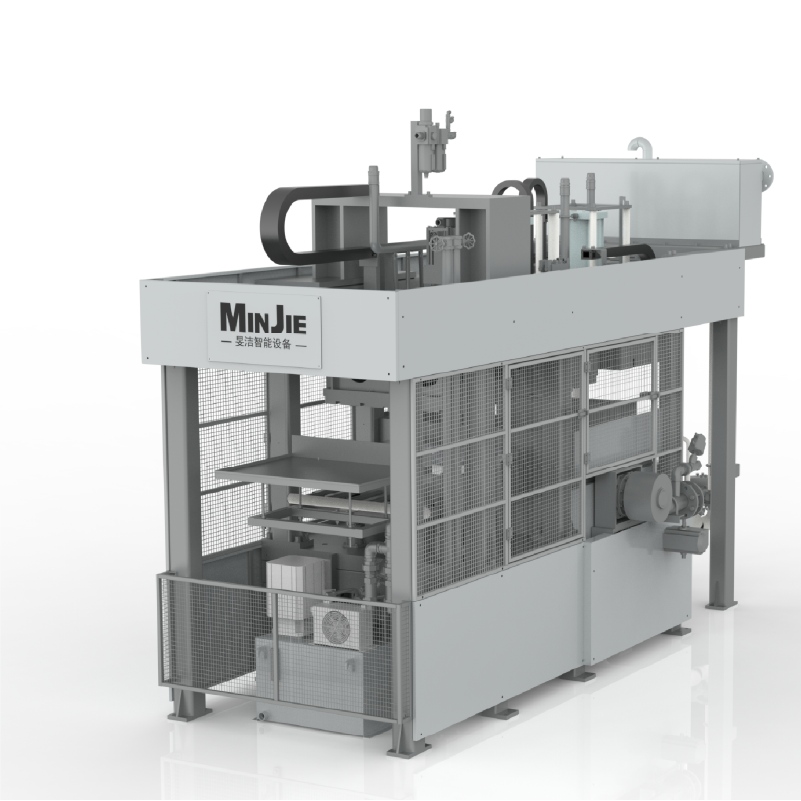

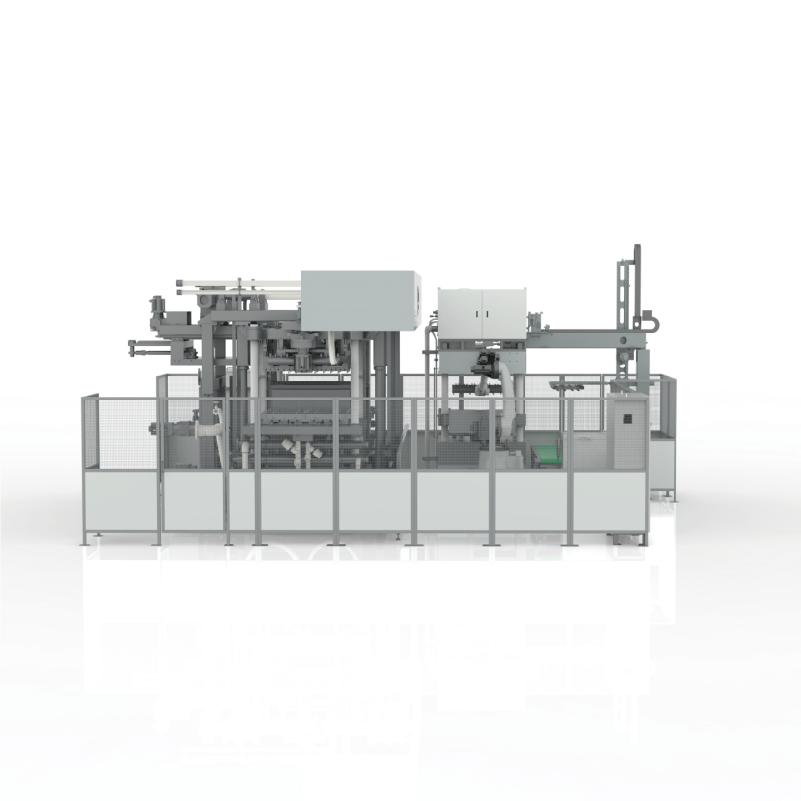

Relate Product
