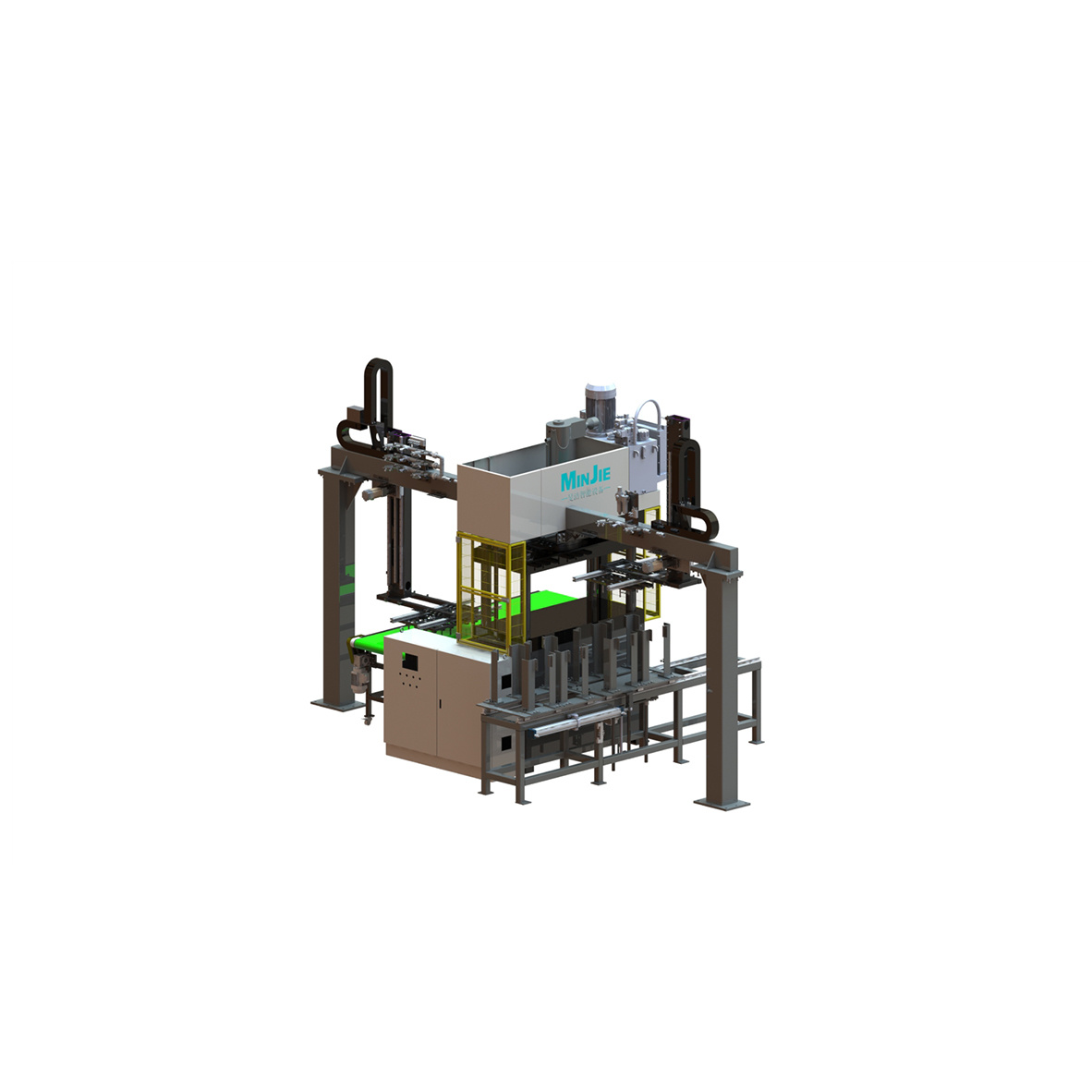

Offline Automatic Food Container Cup Lid Trimming Machine MJYTN-T11075HP
Type:
Machine to do off-line trimming upon food containers, cup lids and some fine-art industrial packages
Leave Message
Equipment introduction
| Item | Technical Parameter |
| Model | MJYTN-11075HP |
| Figure Dimension | 5000mm*2950mm*3300mm |
| Platen Size | 1100mm*750mm |
| Weight | 4.8 tons |
| clamp height | ≥80mm |
| Drive | Hydraulic |
| Rated Heating Power | 13 kw |
| Force | 30 tons |
Equipment advantages
| Processing Point | Drive Method |
| Feeding Trusser | Servo Motor+Precision Reducer |
| Trimming | Hydraulic |
| Pick-up Trusser | Servo Motor+Precision Reducer |
| Product Conveyor | Servo Motor+Precision Reducer |
| Processing point | Parameter/Feature |
| Stiffness | adopting rack structure, increasing the overall machine stiffness |
| operation accuracy | adopting full mechanical structure to ensure accuracy |
| operation safety | based on CE requirement |
| processing adaptability | feasible with PE/PET/PLA/PBAT/PP/EVOH film lamination |
| machine maitenance | reasonable and user-friendly design which makes it easy to do maintenance |
| Machine | Warranty Service | Component Description |
| Offline Automatic Trimming Machine | 3-year Warranty | Machine Racks, Upper Platen, Down Platen, Pulp Tank, etc. |
| 1-year Warranty | Guide rails, Sliding Blocks, Cylinders, Pneumatic Components (not including push-in fittings, sealing parts), reducers, motors, electrical components, etc. | |
| Weary Part (Out of the warranty range) | Buttons, push-in fittings, vacuum skeleton hoses, sealing parts, heat insulation plates, etc. |
