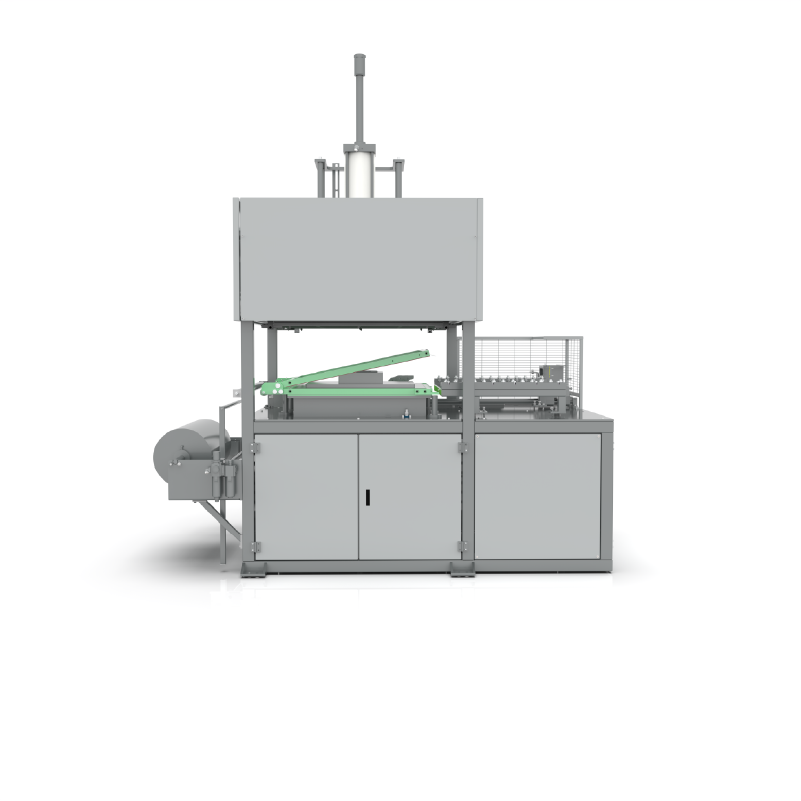

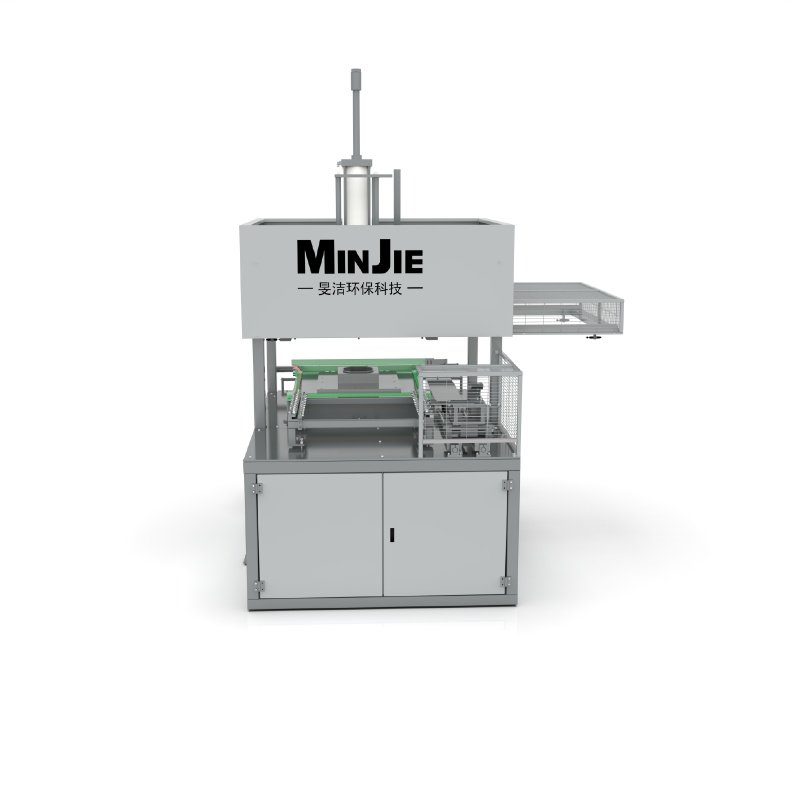

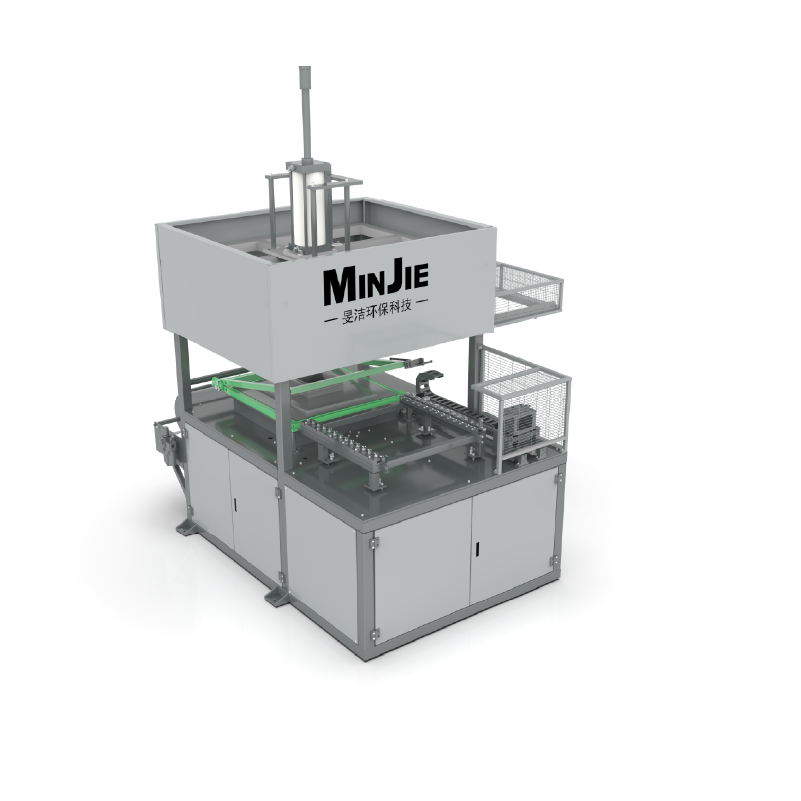

Food Packaging Lamination Machine Prototype MJPLM-66
Type:
Machine to do lamination with PLA, PBAT or other biodegradable films onto molded fiber product
Leave Message
Equipment introduction
| Item | Technical Parameter |
| Model | MJPLM-66 |
| Working | 600mm*600mm |
| Platen Size | 21.6kw |
| Film Width | 520-750mm |
| Sucking disc descending | 100mm(adapt to the product's height from 20-110mm) |
| Vacuum | with 2 sets of 3KW vacuum motor |
| Film types | For PE/PET/PLA/PBAT/PP/EVOH film lamination |
| Pneumatic system working pressure | 0.5 Mpa/set |
| Cycle time | ≥55 seconds(according to film quality and height of products) |
| Mechanical area | 2200mm*2070mm*2400mm |
| Gross Weight | about 1.25 tons |
Equipment advantages
| Processing Point | Drive Method |
| Suction Forming Work Station | Servo Motor+Precision Reducer |
| Heating Station | Servo Motor+Precision Reducer |
| Processing point | Parameter/Feature |
| Stiffness | adopting rack structure, increasing the overall machine stiffness |
| operation accuracy | adopting full mechanical structure to ensure accuracy |
| operation safety | based on CE requirement |
| processing adaptability | feasible with PE/PET/PLA/PBAT/PP/EVOH film lamination |
| machine maitenance | reasonable and user-friendly design which makes it easy to do maintenance |
| Machine | Warranty Service | Component Description |
| Tableware Machine | 3-year Warranty | Machine Racks, Upper Platen, Down Platen, Pulp Tank, etc. |
| 1-year Warranty | Guide rails, Sliding Blocks, Cylinders, Pneumatic Components (not including push-in fittings, sealing parts), reducers, motors, electrical components, etc. | |
| Weary Part (Out of the warranty range) | Buttons, push-in fittings, vacuum skeleton hoses, sealing parts, heat insulation plates, etc. |
Equipment Video

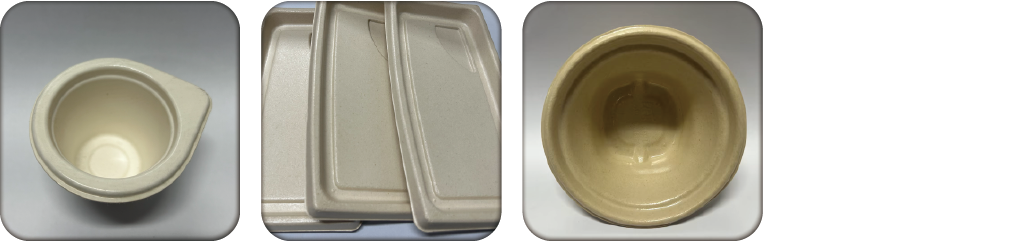

Product Applications
Keywords:
lamination machine
molded fiber tableware film
laminated food container
