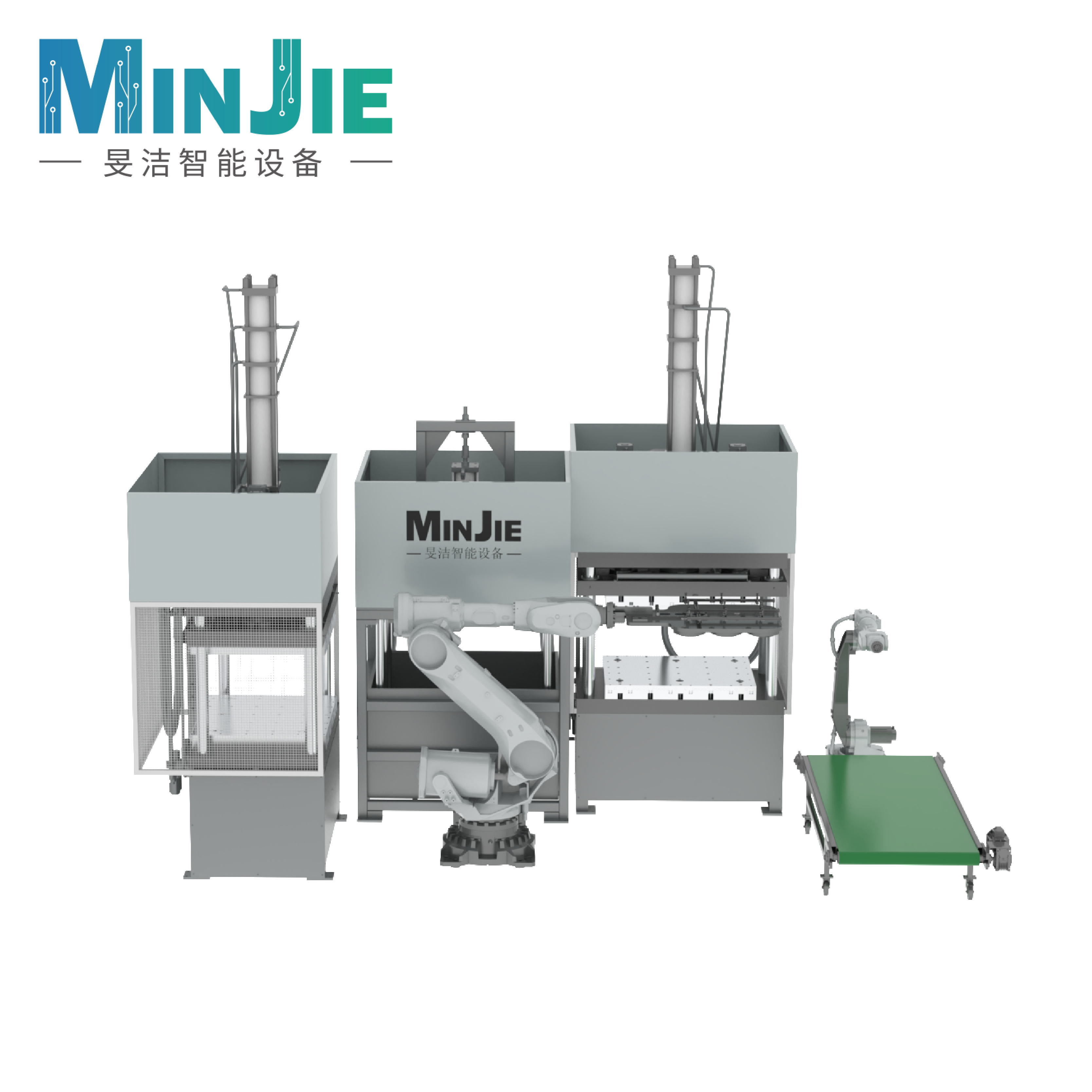

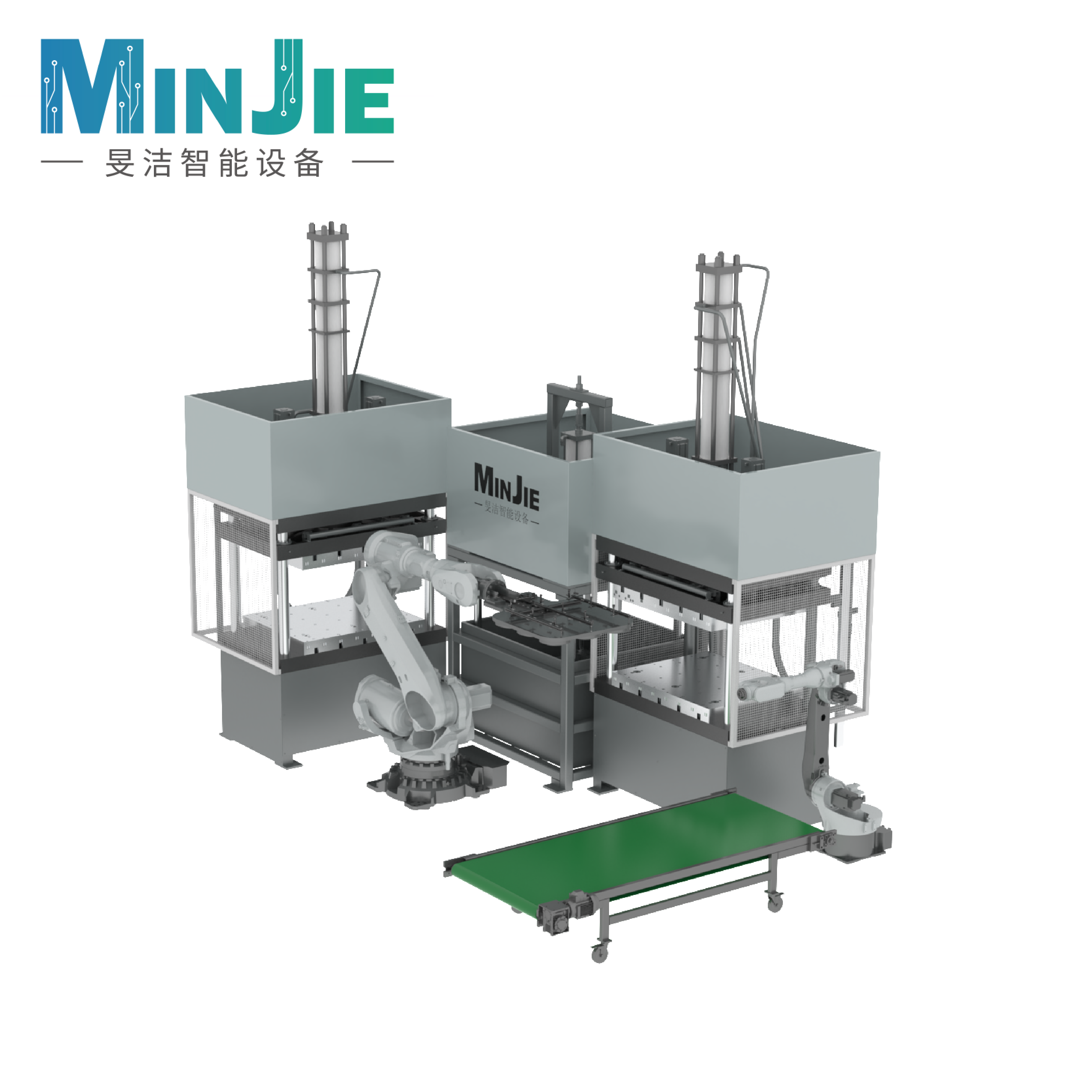

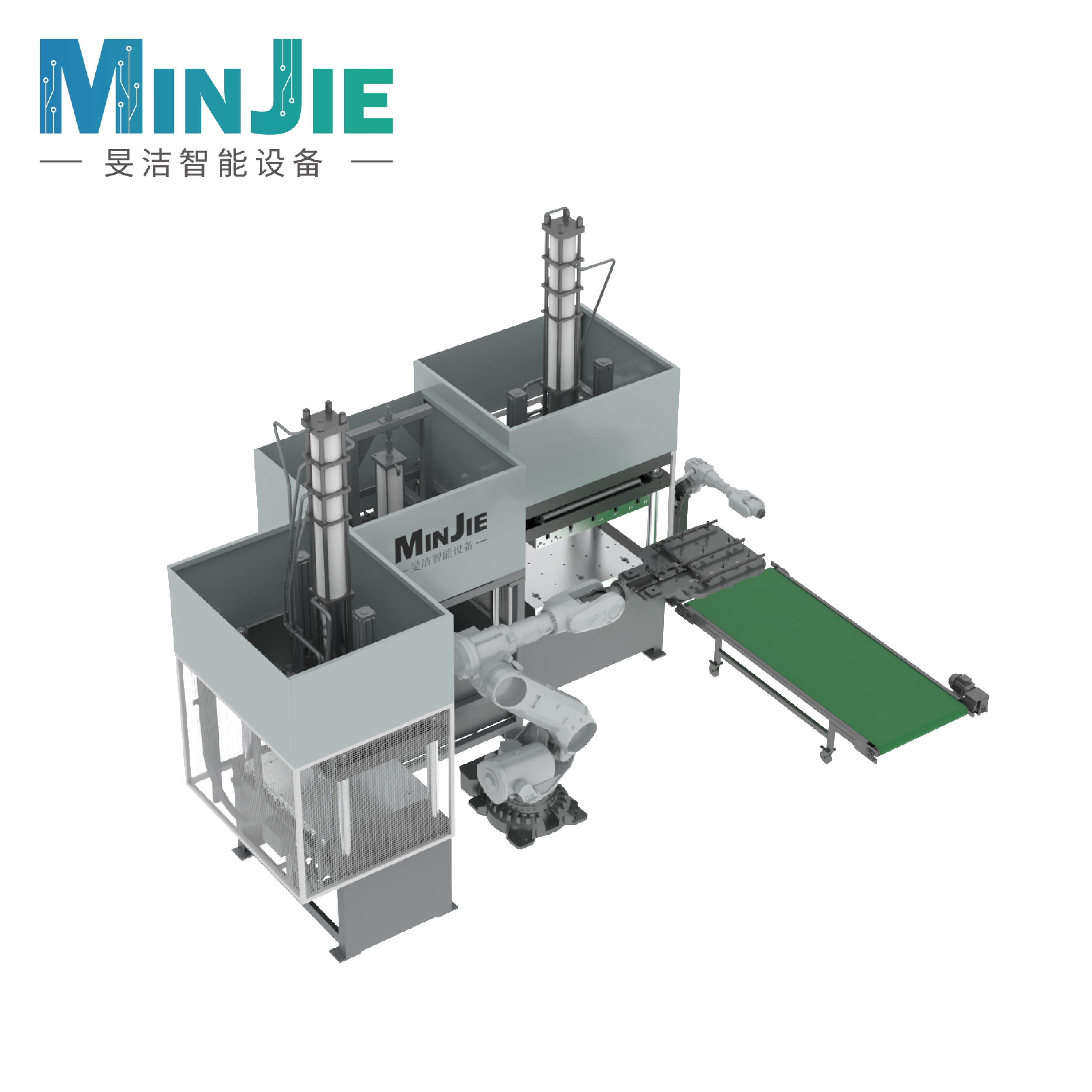

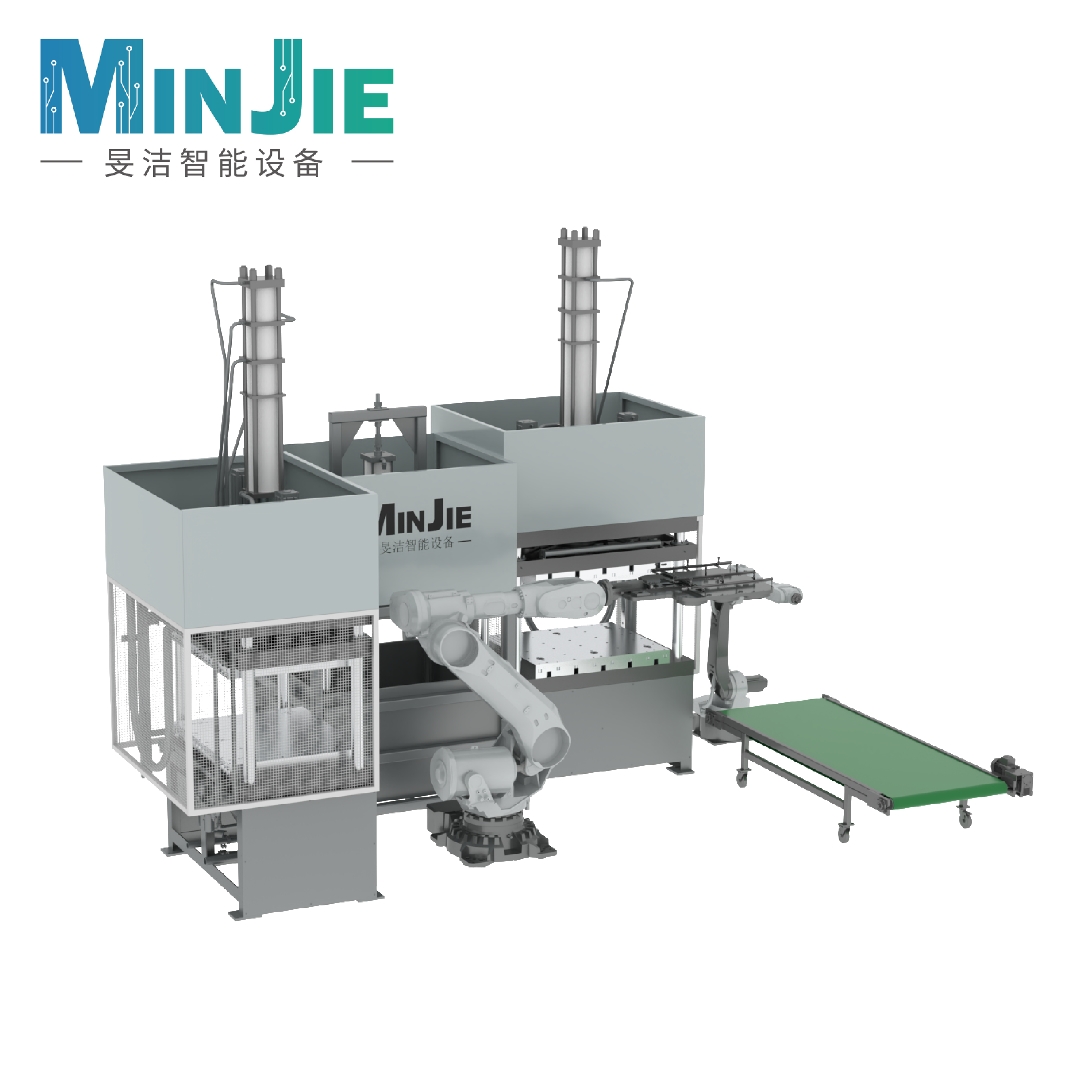

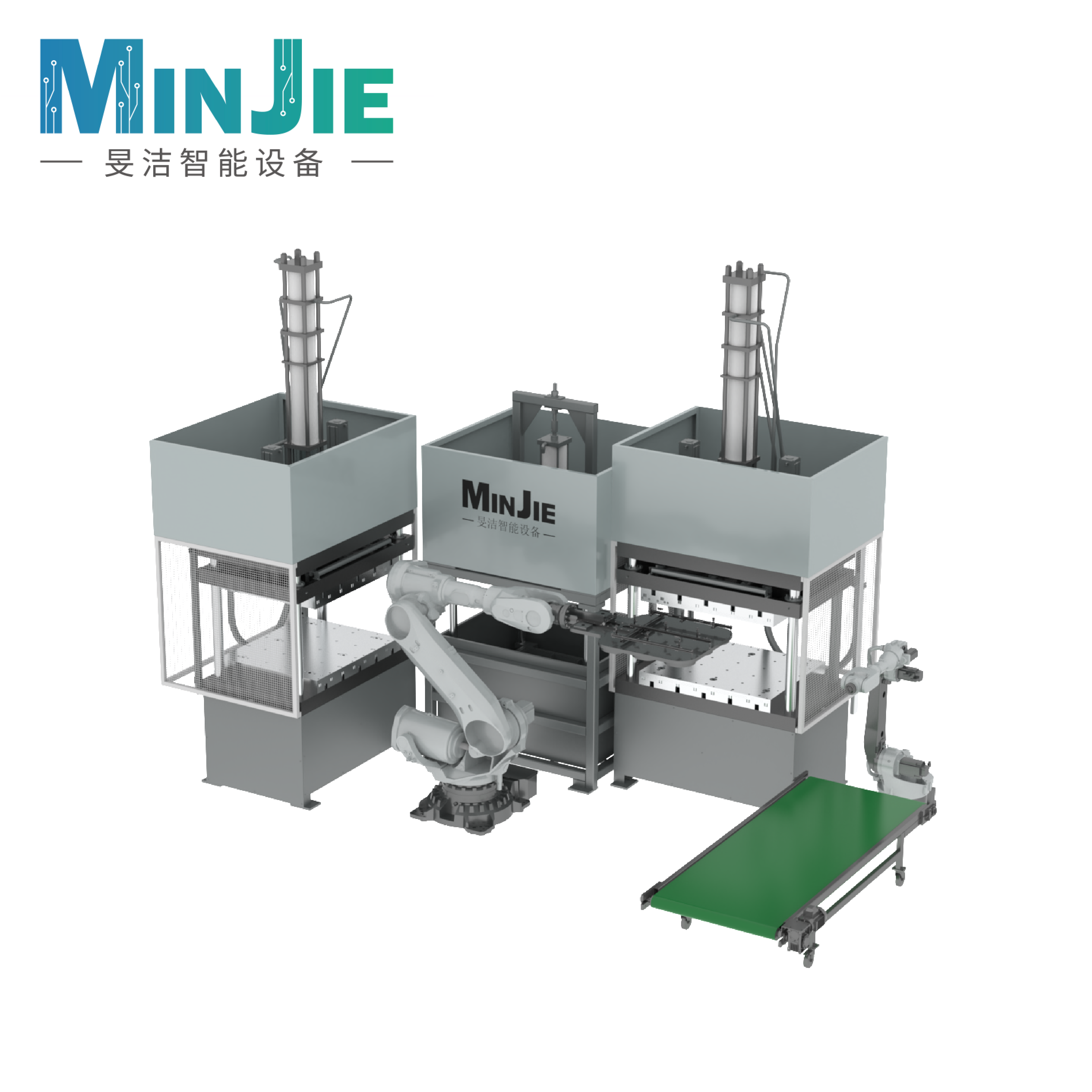

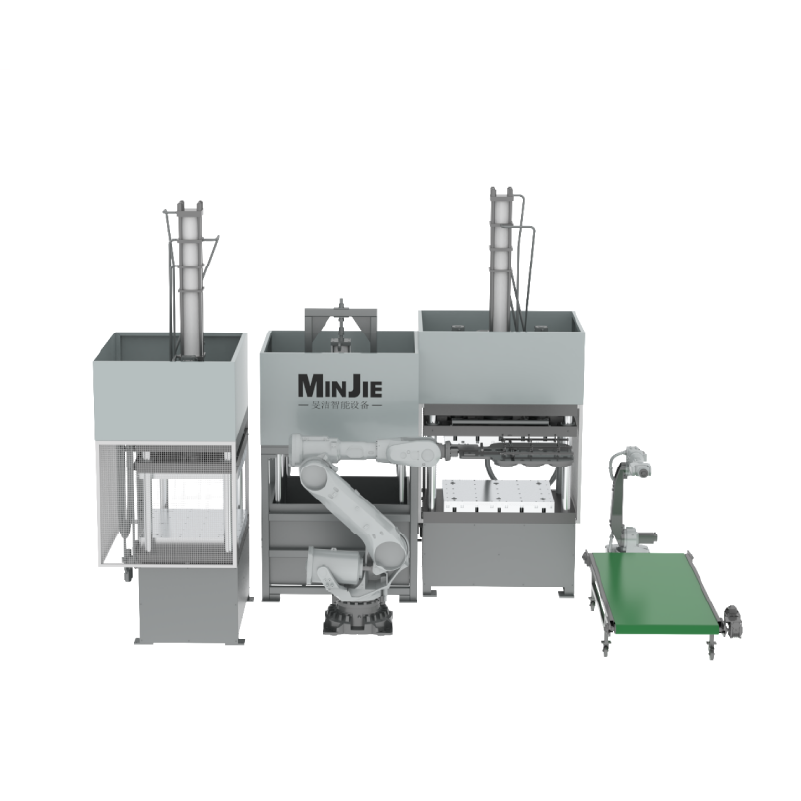

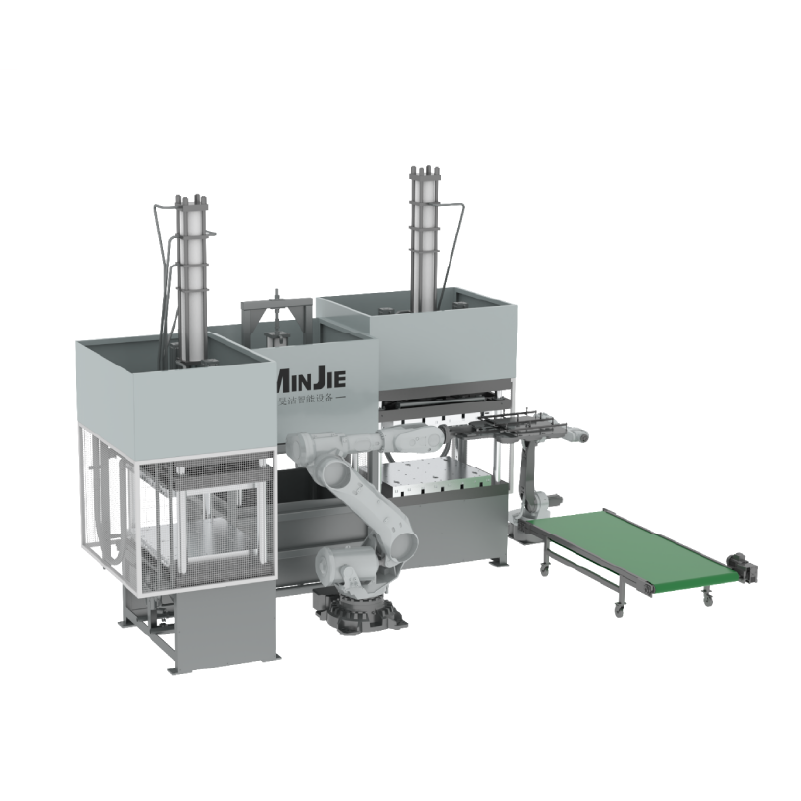

Full-automation Molded Fiber Tableware Machine MJWTN121-1010
Type:
Structure: dig forming, two hot press working stations and in-line trimming, with two molder combination
Leave Message
Equipment introduction
| Item | Technical Parameter |
| Platen size | 950mm*950mm |
| Structure | Suction Forming + Heat Press(two stations) + Robot + Online Trimming |
| Heat Power | Thermal OilHeating or Electrical Heating |
| Rated Power | 2kw(thermal oil heating) or 122kw(electrical heating) |
| Outer Size | 7500mm*4700mm*4500mm |
| Weight | 18.3 tons |
| Average Output | 400-600kgs/day |
| Vacuum Setting | 23-25 m³/min |
| Air Setting | 3.5-4.5 m³/min |
| Forming Type | Dig Suction |
| Main Drive | Servo(Suction Forming) + Pneumatic(Heat Press) + Hydraulic(Trimming) |
| Feature | Capable of making food packagings with General design,like clamshells,plates,trays,bowls |
Equipment advantages
| Processing Point | Drive Method |
| Suction Forming Work Station | Servo Motor+Precision Reducer |
| Heat Press Station | Pneumatic (Air-liquid Booster, 60 tonnage Force) |
| Multi-joint Robot | Servo Motor+Precision Reducer |
| Trimmimg Work Station | Hydraulic (Hydraulic Servo，60 tonnage Force) |
| Stacking/Conveyor/Trusser Mechanism | Servo Motor+Precision Reduce |
| Wet Product Transfer (Suction Forming-->Left Heat Press) (Suction Forming-->Right Heat Press) | Servo Motor+Precision Reduce |
| Processing point | Parameter/Feature |
| Stiffness | adopting rack structure, increasing the overall machine stiffness |
| operation accuracy | adopting full mechanical structure to ensure accuracy |
| operation safety | based on CE requirement |
| pipeline design | optimized pipeline layout which makes the processing with higher stability |
| mold maintenance | with relatively low heating temperature (160-180℃) which lengths the hole-cleaning duration, and with reasonably long mold cleaning period. |
| machine maitenance | reasonable and user-friendly design which makes it easy to do maintenance |
| Machine | Warranty Service | Component Description |
| Tableware Machine | 3-year Warranty | Machine Racks, Upper Platen, Down Platen, Pulp Tank, ect. |
| 1-year Warranty | Guiderails, Sliding Blocks, Cylinders, Pneumatic Components (not including push-in fittings, sealing parts), reducers, motors, electrical components, ect. | |
| Weary Part (Out of the warranty range) | Buttons, push-in fittings, vacuum skeleton hoses, sealing parts, heat insulation plates, ect. |
Equipment Video
Product Applications

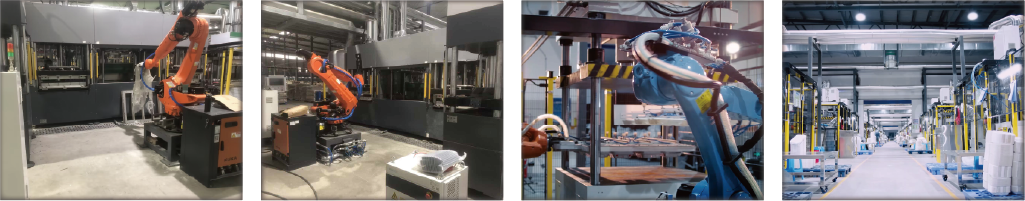

Representative Case
