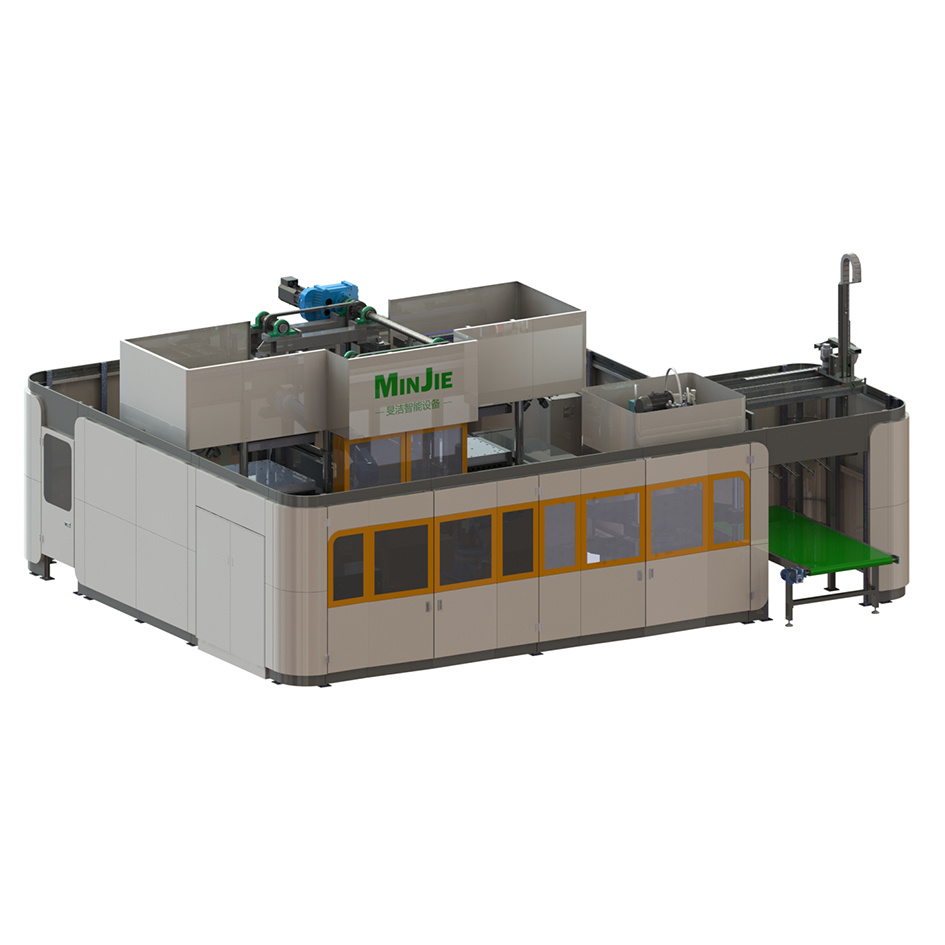

Full Automation Molded Fiber Cup & Cup Lid Machine MJCTN121-1210
Type:
Device application:
Food containers with general-design with sealing function requirement,or coffer cup lid,drinks cup lid and cup with requierement on negative angle or height
Equipment advantages:
1.Feasible Product Range:
● draft angle more than 10 degrees with height not more than 80mm
● draft angle more than 3 degrees with height not more than 50mm
● draft angle more than 1 degrees with height not more than 20mm
2.Introduction to processing:
● Suction Forming→Heat Extrusion(optional depending on product)→Heating→Trimming→Scrap Cleaning→Stacking
3.Servo + Hydraulic drive, with precise locating guaranteed, running fast with high stability
4.Rotary Suction forming, with pulp evenly distributed
5.Equipped with multi-joint robot, with product transferring flexible and reliable
6.Equipped with heat extrusion module, with products pressed twice, bring better quality
7.Single Molder Daily Capacity: 800~1000 kg/day (based on exact design)

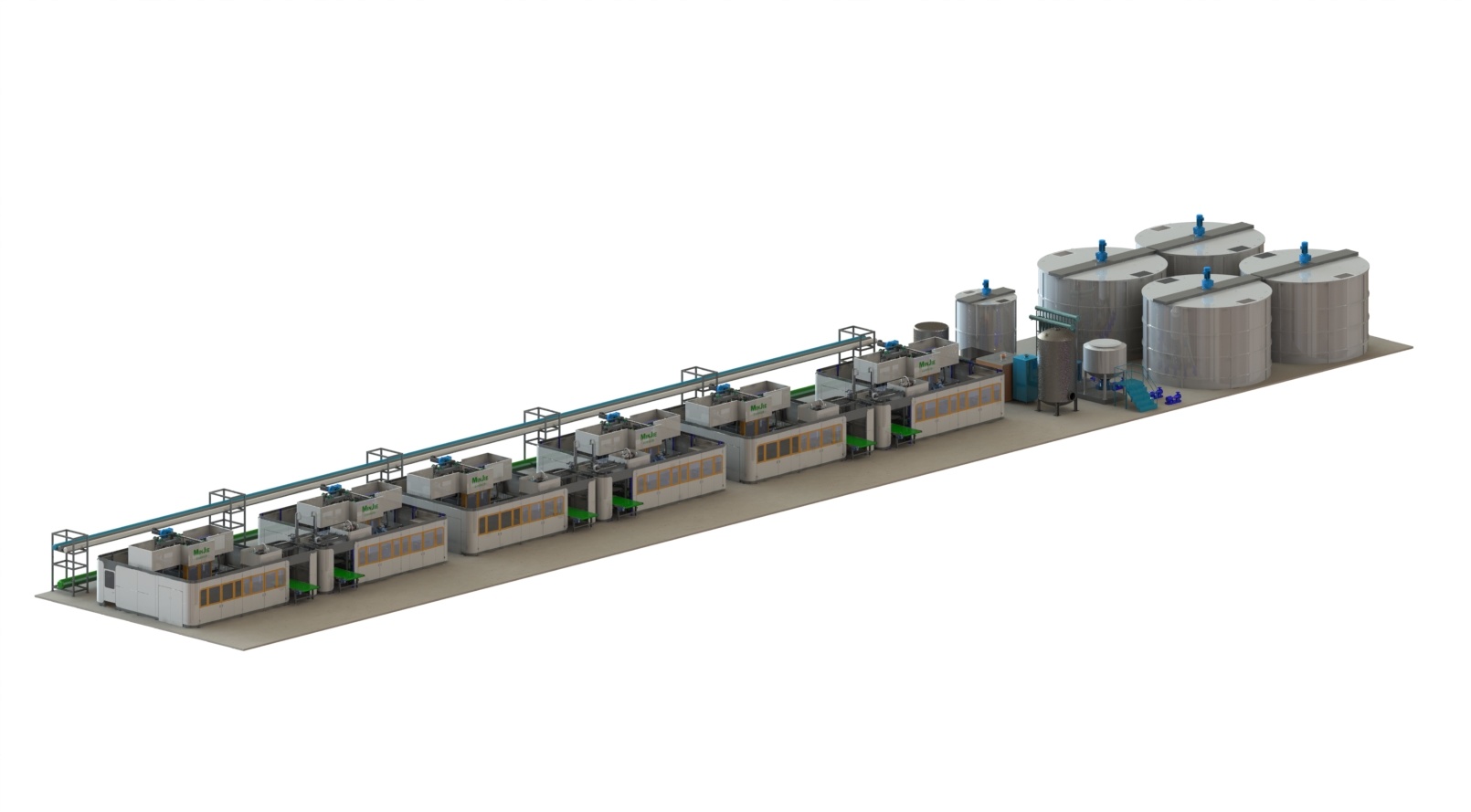

Equipment Layout Design for reference:
Equipment video display:
Main parameters of equipment:
Item | Technical Parameter |
Figure Dimension(mm) | 7800*6800*3800 |
Weight(Ton) | 28.5 |
Platen Size(mm) | 1200*1000 |
Work Stations | Wet Forming(Rotary Type)+Extrusion+Hot-press(2 stations )+Multi-joint Robot+In-line Trimming |
Platen Parallelism | When the single platen clamping force reaches the max (45T), single platen parallelism≤0.5mm |
Mold Installation Method | Lock with Nuts |
Material Configuration |
All parts which directly contact pulp or water are with stainless stain pipes or baffles.
Wet Forming Platen Base: 304Stainless Steel Transfer Platen Base:QT450-10 Hot-press Upper and Down Platen base:QT450-10 Trimming Upper and Down Platen base:QT450-10
|
