Full-automation Inside-out Mesh Transfer Molded Fiber Tableware Machine MJWTN121-9595A

Full-automation Inside-out Mesh Transfer Molded Fiber Tableware Machine MJWTN121-9595A

Type:

Thermoforming Machinery

Structure: dig forming, two hot press working stations and in-line trimming, with two molder combination

Leave Message

Device application:

Food containers with general designs, including trays, plates, dishes, clamshells, shallow bowls.

Equipment advantages:

1.Feasible Product Range:
● draft angle more than 12 degrees with height not more than 80mm
2.Introduction to processing:
● Suction Forming→Heating→Trimming→Scrap Cleaning→Stacking

● Two molders as a couple, with trimming stations sharing one single multi-joint robot
3.Servo + Pneumatic drive, with precise locating guaranteed, running smoothly with high stability
4.Dig Type Suction forming, with pulp relatively evenly distributed
5.Equipped with multi-joint robot (with tranfer frame), with product transferring flexible and reliable
6.Molder Daily Capacity: 800~1200 kg/day (based on exact design) per couple (namely, two molders)

7.Note: wet product and untrimmed dry product is transferred by mesh frame carried by multi-joint robot with at least 80 kgs. (compared with molder: MJWTN121-9595A, the difference comes to the transfer way and robot's work load capacity)

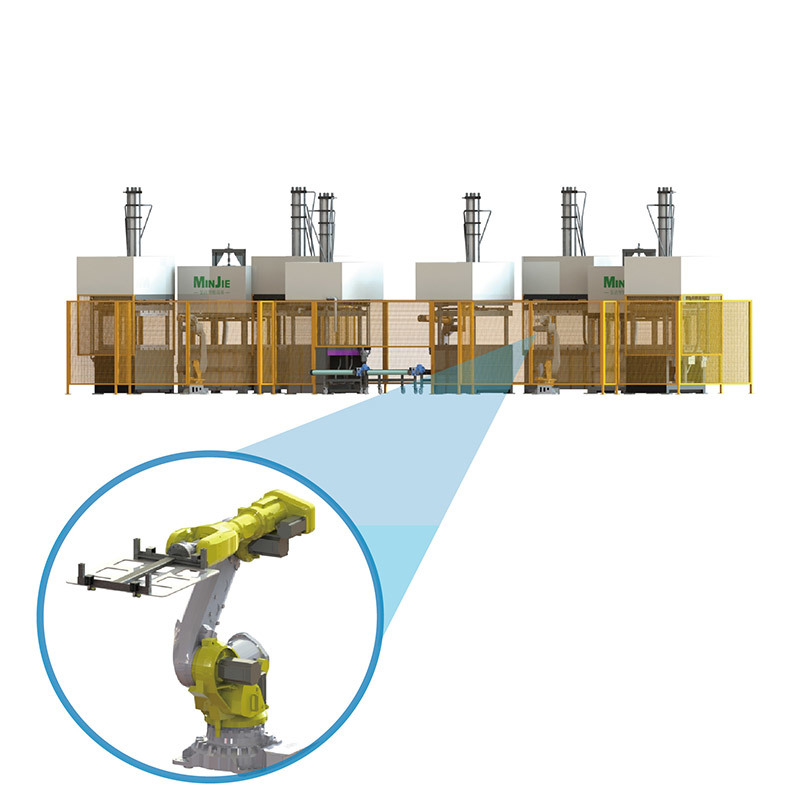

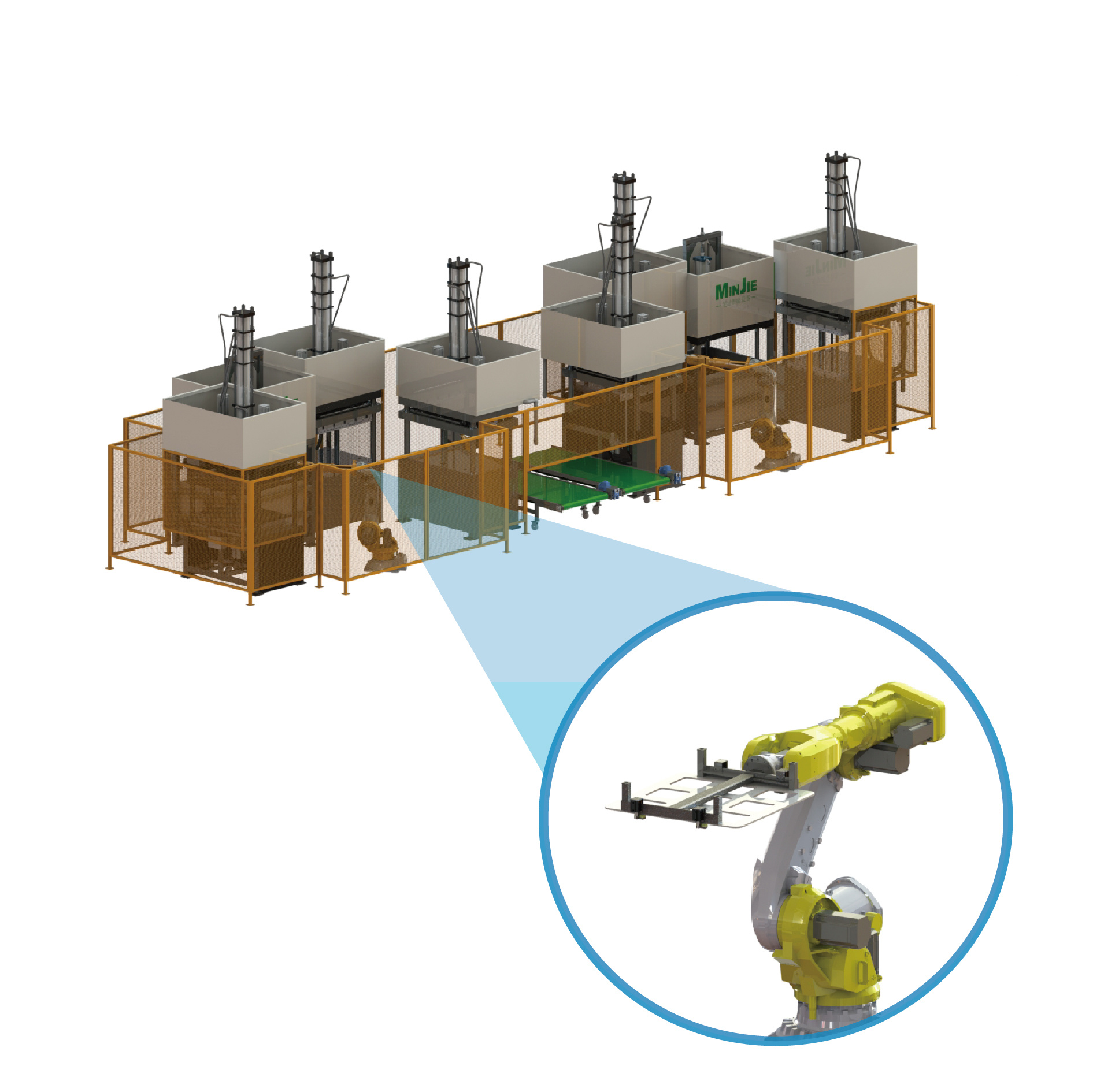

Equipment Layout Design for Reference

Equipment video display:

Main parameters of equipment:

Item	Technical Parameter
Model	MJWTN121-9595A
Figure Dimension(mm)	660033004300
Weight(Ton)	13
Platen Size(mm)	950*950
Work Stations	Wet Forming(Dig Type)+Hot-press(2 stations )+Multi-joint Robot(with mesh frame)+In-line Trimming
Platen Parallelism	When the single platen clamping force reaches the max (45T), single platen parallelism≤0.5mm
Mold Installation Method	Lock with Nuts
Material Configuration	All parts which directly contact pulp or water are with stainless stain pipes or baffles. Wet Forming Platen Base: 304Stainless Steel Transfer Platen Base：QT450-10 Hot-press Upper and Down Platen base：QT450-10
